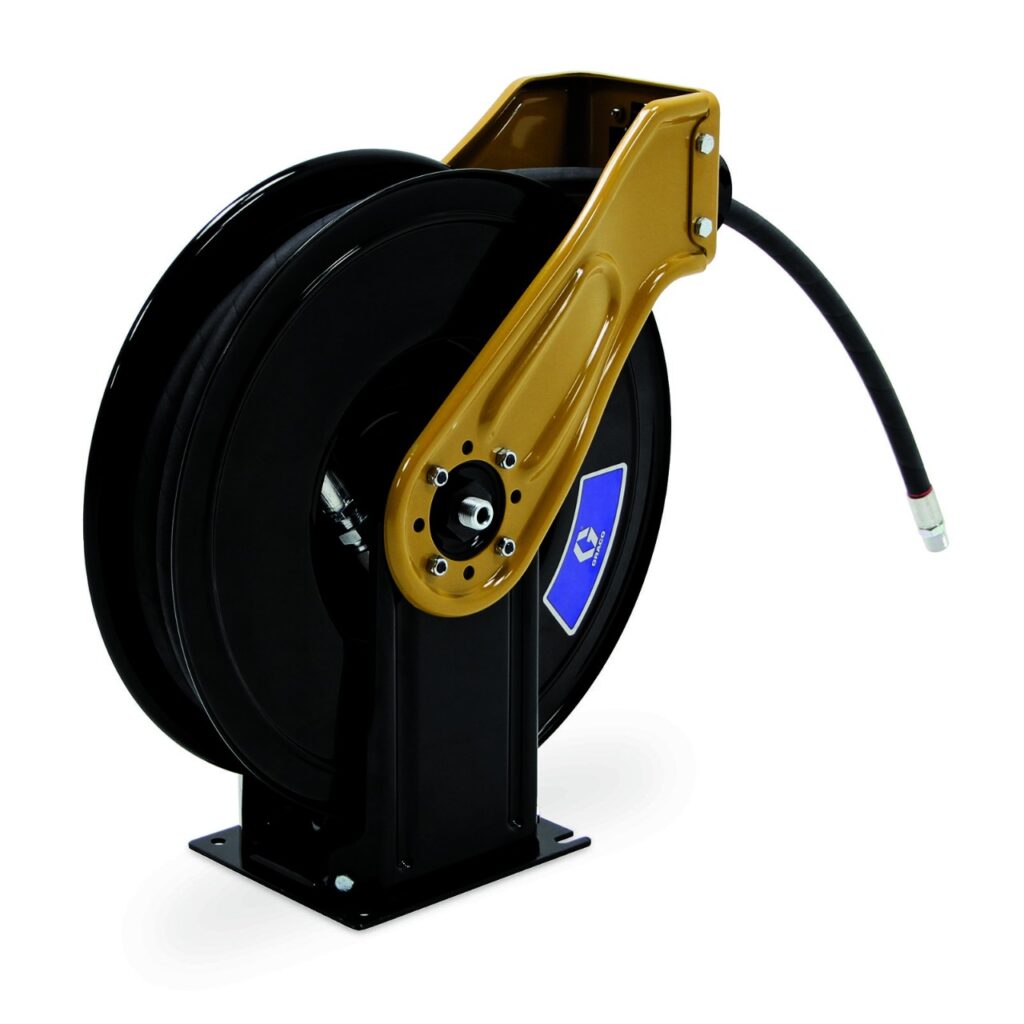

Graco XDX 20 Bare Hose Reel – 1/2″ (13mm) inlet x 50ft (15m) – XDH5DF

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Features & Benefits:

– Spring Adjustment – Increase or decrease spring tension while reel is pressurised with fluid
– Full-Flow Swivel – Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
– Optional Adjustable Arm – Easily change the arm position for your required application, order with arm (HS Models) or without (HN Models)
– Large hose capacity with small profile – compact pedestal and spool fits into tight spaces and can accommodate 10.7-19.8m (35-65ft) hose capacity for a wide variety of applications.
– Durable finish – baked-on enamel finish protects reel from corrosion

Technical Specifications:

– Application: Grease
– Colour: Yellow
– Frame Type: Dual Pedestal
– Hose Reel Type: Bare Reel
– Includes Hose: No
– Inlet Size: 1/2″ (12.7mm)
– Hose Inside Diameter: 3/8″ (9.525mm)
– Mount Location: Truck/Bench Mount
– Maximum Working Pressure: 8000 (psi)
– Height: 508mm (Overall)
– Length: 533mm (Overall)
– Width: 196mm (Overall)
– Reel Thread Type: NPT
– Recommended Environment: Indoor/Outdoor

Image is for illustrative purposes only.
